單晶矽太陽能模組
72 (6x12) Cells

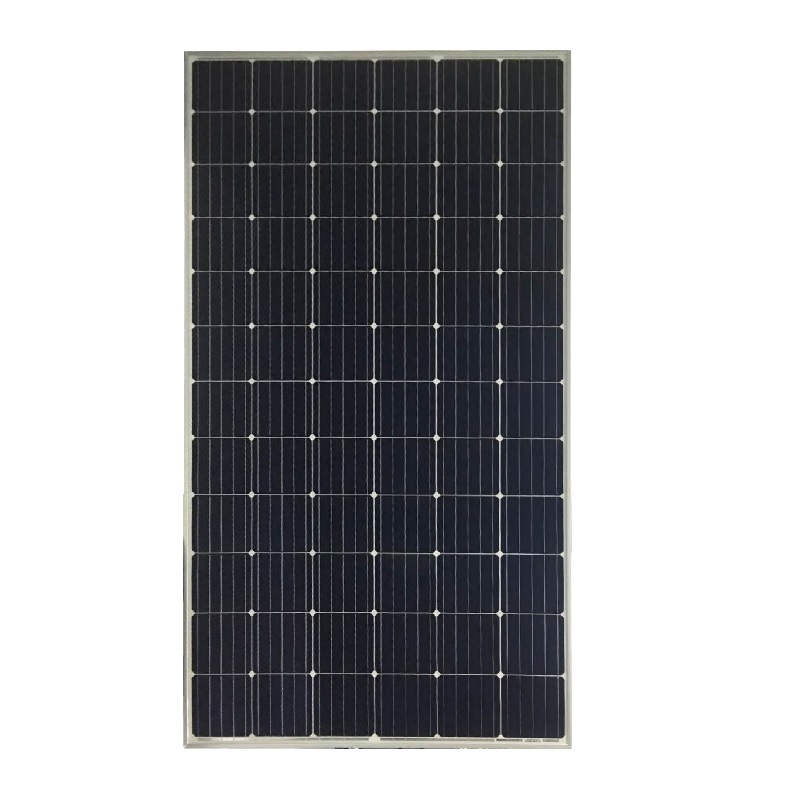

315W-330W 單晶矽太陽能模組

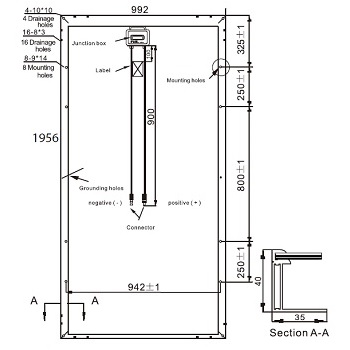

Mechanical characteristics
- Number of Cell: 72 cells
- Dimension: 1956x992x40 mm
- Weight: 23.0 Kgs
- Junction Box: IP65/IP67 rated (3 bypass diodes)
- Connectors: MC4 compatible
- Mechanical load test: 5400Pa
Electrical Characteristics
| Type | N6M315W72P | N6M320W72P | N6M325W72P | N6M330W72P | |
| Maximum Power (Pmax) | 315W | 320W | 325W | 330W | |
| Open Circuit Voltage (Voc) | 43.8V | 44.0V | 44.0V | 44.2V | |
| Short Circuit Current (Isc) | 9.27A | 9.37A | 9.52A | 9.62A | |
| Voltage at Maximum Power (Vmpp) | 35.9V | 36.1V | 36.1V | 36.3V | |
| Current at Maximum Power (Impp) | 8.77A | 8.86A | 9.00A | 9.09A | |
| Module Efficiency | 16.23% | 16.48% | 16.74% | 17.00% | |
| Power Tolerance | 0/+5W | ||||
| Operating Module Temperature | -40℃ to +85℃ | ||||
| Maximum System Voltage | 1500VDC (IEC) / 600VDC (UL) | ||||
| Maximum Series Fuse Rating | 15A | ||||
| Temperature Characteristics | Nominal Operating Cell Temperature (NOCT) | 45+/-2℃ | |||
| Temperature Coefficient of Pmax | -0.42%/℃ | ||||
| Temperature Coefficient of Voc | -0.32%/℃ | ||||
| Temperature Coefficient of Isc | 0.05%/℃ | ||||
