單晶矽太陽能模組
60 (6X10) Cells

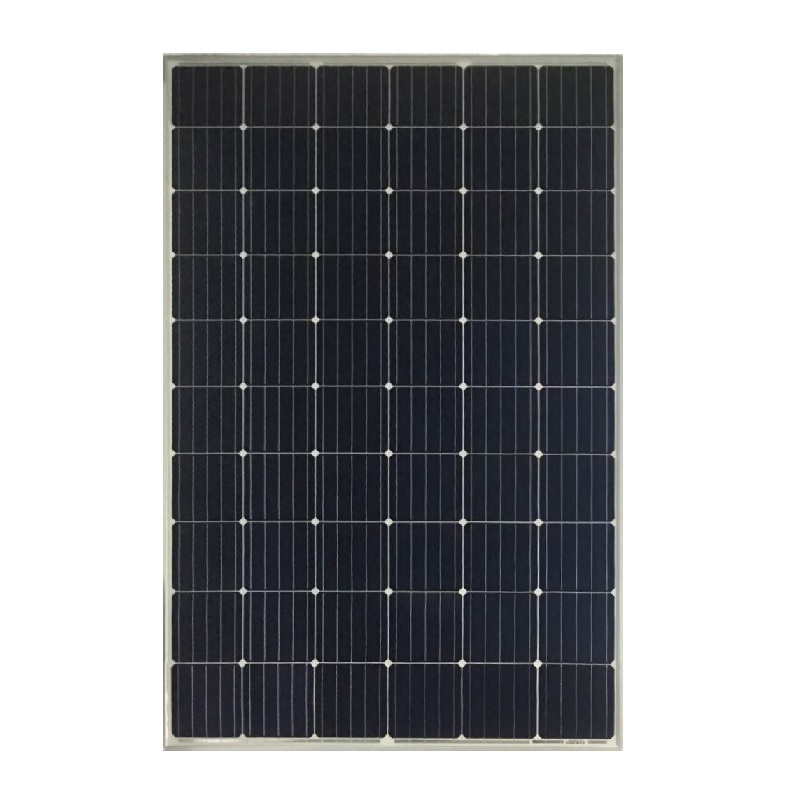

270W-290W 單晶矽太陽能模組

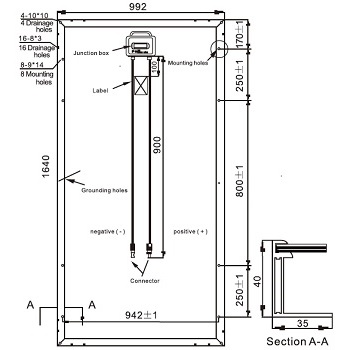

Mechanical characteristics
- Number of Cell: 60 cells
- Dimension: 1640x992x40 mm
- Weight: 20.0 Kgs
- Junction Box: IP65/IP67 rated (3 bypass diodes)
- Connectors: MC4 compatible
- Mechanical load test: 5400Pa
Electrical Characteristics
| Type | N6M270W60P | N6M275W60P | N6M280W60P | N6M285W60P | N6M290W60P | ||
| Maximum Power (Pmax) | 270W | 275W | 280W | 285W | 290W | ||
| Open Circuit Voltage (Voc) | 38.2V | 38.3V | 38.5V | 38.7V | 38.9V | ||
| Short Circuit Current (Isc) | 9.17A | 9.25A | 9.37A | 9.49A | 9.60A | ||
| Voltage at Maximum Power (Vmpp) | 31.0V | 31.3V | 31.5V | 31.7V | 31.9V | ||
| Current at Maximum Power (Impp) | 8.71A | 8.79A | 8.89A | 8.99A | 9.09A | ||
| Module Efficiency | 16.60% | 16.90% | 17.20% | 17.52% | 17.83% | ||
| Power Tolerance | 0/+5W | ||||||
| Operating Module Temperature | -40℃ to +85℃ | ||||||
| Maximum System Voltage | 1500VDC (IEC) / 600VDC (UL) | ||||||
| Maximum Series Fuse Rating | 15A | ||||||
| Temperature Characteristics | Nominal Operating Cell Temperature (NOCT) | 45+/-2℃ | |||||
| Temperature Coefficient of Pmax | -0.42%/℃ | ||||||
| Temperature Coefficient of Voc | -0.32%/℃ | ||||||
| Temperature Coefficient of Isc | 0.05%/℃ | ||||||
